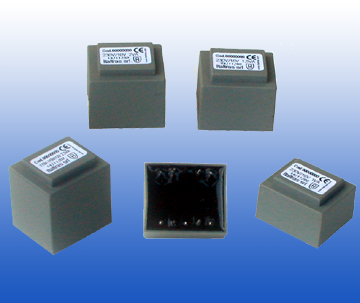

Trasformatori incapsulati in resina - Encapsuled transformes

Mono-phase		Three-phase		Encapsulated		Toroidal		For electronic		Power supplies
				Standard
0.6 VA		1.5 VA	1.8 VA	2 VA	2.3 VA	2.5 VA	2.8 VA	3.2 VA	5.5 VA	7 VA	8.5 VA
9 VA	10 VA	13 VA	16 VA	20 VA	22 VA	26 VA	30 VA	32 VA	38 VA	45 VA	52 VA

2.5VA

Datasheet

Weight 192g

Output 1x
Code	Primary V	Secondary V	Marks
Code	Pin 1-5	Pin 7-9	Marks
42014500	230V	6V
42014600		9V
42014700		12V
42014800		15V
42014900		18V
42015000		24V
42016000	115V	6V
42016100		9V
42016200		12V
42016300		15V
42016400		18V
42016500		24V
Output 2x
Code	Primary V	Secondary V	Marks
Code	Pin 1-5	Pin 6-7 / 9-10	Marks
42017500	230V	2x6V
42018000		2x9V
42018500		2x12V
42019000		2x15V
42019500		2x18V
42020500	115V	2x6V
42020600		2x9V
42020700		2x12V
42020800		2x15V
42020900		2x18V
