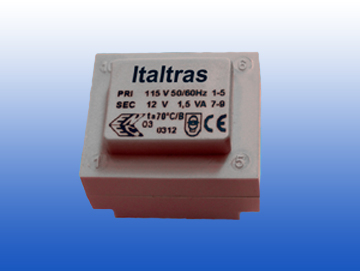

Trasformatori EI30 incapsulati in resina - Encapsulated transformes EI30

Mono-phase		Three-phase		Encapsulated		Toroidal		For electronic		Power supplies
				Standard
0.6 VA		1.5 VA	1.8 VA	2 VA	2.3 VA	2.5 VA	2.8 VA	3.2 VA	5.5 VA	7 VA	8.5 VA
9 VA	10 VA	13 VA	16 VA	20 VA	22 VA	26 VA	30 VA	32 VA	38 VA	45 VA	52 VA

1.5VA

Datasheet

Weight 65g

Output 1x
Code	Primary V	Secondary V	Marks
Code	Pin 1-5	Pin 7-9	Marks
41812706	230V	6V
41812709		9V
41812712		12V
41812715		15V
41812718		18V
41812724		24V
41812306	115V	6V
41812309		9V
41812312		12V
41812315		15V
41812318		18V
41812324		24V
Output 2x
Code	Primary V	Secondary V	Marks
Code	Pin 1-5	Pin 6-7 / 9-10	Marks
41812806	230V	2x6V
41812809		2x9V
41812812		2x12V
41812815		2x15V
41812406	115V	2x6V
41812409		2x9V
41812412		2x12V
41812415		2x15V
