Trasformatori a giorno da circuito stampato o telaio - Open transformers for rack or PCB

Mono-phase		Three-phase		Encapsulated		Toroidal		For electronic		Power supplies
Rack 0 - 55 VA
		20 VA	22 VA	26 VA	30 VA	32 VA	38 VA	45 VA	50 VA	52 VA	55 VA

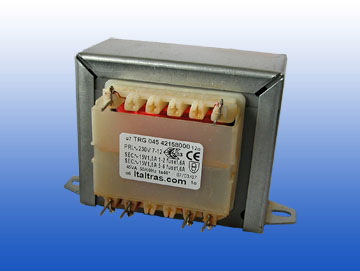

								45 VA Faston

45VA

Datasheet

Weight 1250g

Secondary 1x
Code	Primary V	Secondary V		Marks
	Pin 1-6	Pin 8-11
42155500	230V	6
42155600		9
42155700		12
42155800		15
42155900		18
42156000		24
Secondary 2x
Code	Primary V	Secondary V		Marks
	Pin 1-6	Pin 7-8	Pin 11-12
42156500	230V	6	6
42157000		9	9
42157500		12	12
42158000		15	15
42158500		18	18
42159000		21	21
