Alimentatori da Laboratorio Singola Uscita

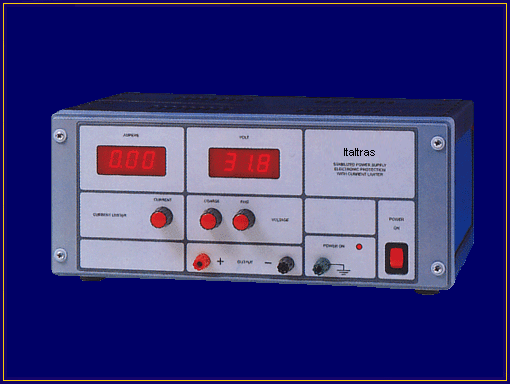

Laboratory Single Power Supplies Bench Models
Alimentation Profesionelle pour Laboratorie


150 W
Dimensions
Technical data
Weight 8 Kg

Code

31408200

 Specifications

 PST305
 Voltage range 0-30 Vdc
 Ripple voltage 2 mV RMS +/- 50%
 Stability 0.05%
 Recovery time 25 uS
 Current max 0.1- 5A
 Dimension BoxPSN(B1)
 Main supply 220-242 Vac +-10% 47-63 Hz
 Amp. Temp  40°C Max
 Safety Class I  EN60065, EN61558-1/2/3
 EMC EN55014-1, EN60555-1 IEC1000-4-2/4/5/6/11
