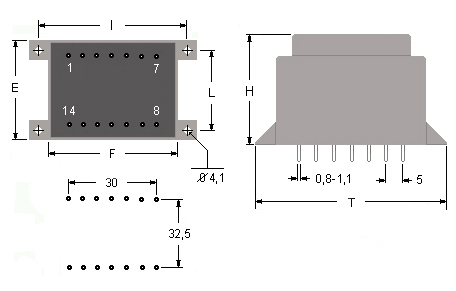

Dimensioni
fisiche Physical
dimensions
|
|
Versione
A (base) colonna 20 EI60
|
|
Versione
B (su richiesta) colonna 22 EI66
|
|
|
|
|
Quote Versione
A (base) colonna 20 -
Standard |
|
E |
54mm+/-0.2
|
F |
64mm+/-0.2
|
|
I |
72,5mm+/-0.2
|
T |
81,5mm+/-0.2
|
|
L |
43,5mm+/-0.2
|
H |
58,5mm
|
|
Lamelle |
EI60
|
Colonna |
20
|
|
Quote
Versione
B (su richiesta) colonna 22 -
On request |
|
E |
58,6mm+/-0.2
|
F |
69,6mm+/-0.2
|
|
I |
77,5mm+/-0.2
|
T |
87,3mm+/-0.2
|
|
L |
47,5mm+/-0.2
|
H
|
48,8mm+/-0.2
|
|
Lamelle |
EI66
|
Colonna
|
22
|
|
|
